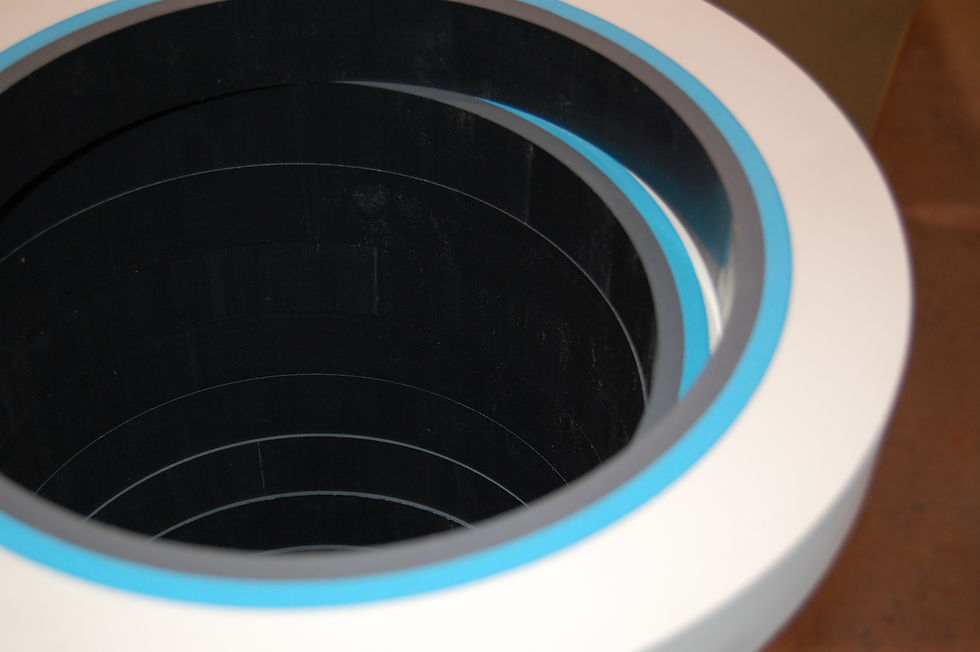

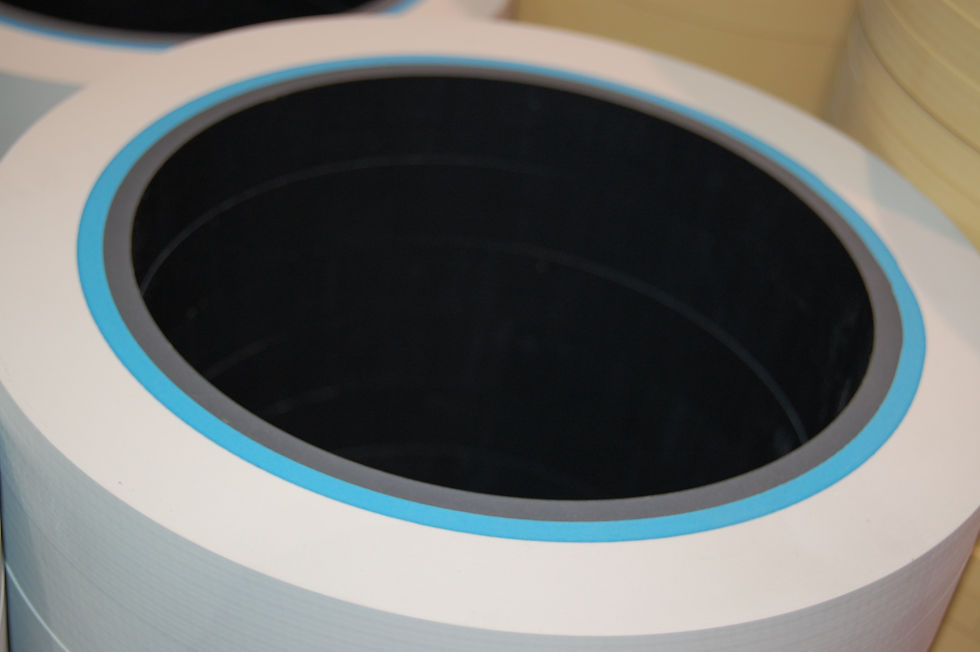

Eagle Rubber stripper rings are available up to 30" outside diameter. The two most common materials are Buna N (Nitrile) and Urethane, both cast & millable. Neoprene was once the workhorse of the industry and although still available, it has been replaced by Buna N in most slitting applications.

Cut sizes are available from a full 36" sleeve for those who cut their own down to .062" thick for most sizes, down to .032" for smaller OD sizes.



Standard tolerances:ID - Snug fit, Loose fit and others can be produced

 OD - Males +.020"/-.000" and Females +.000/-.020" (+/-.010" as requested)

 Cuts - +000/-.030" standard - tighter available depending on cut width


In most cases the male sets are 80/85 durometer and the females are dual durometer with a 90 durometer black ID and 60/65 durometer OD.

Colors Available:

  • Red

  • Blue

  • Yellow

  • Pink

  • White

  • Black

1/5
  • Tan

  • Gray

  • Green

  • Purple

  • Orange

STRIPPER RINGS
